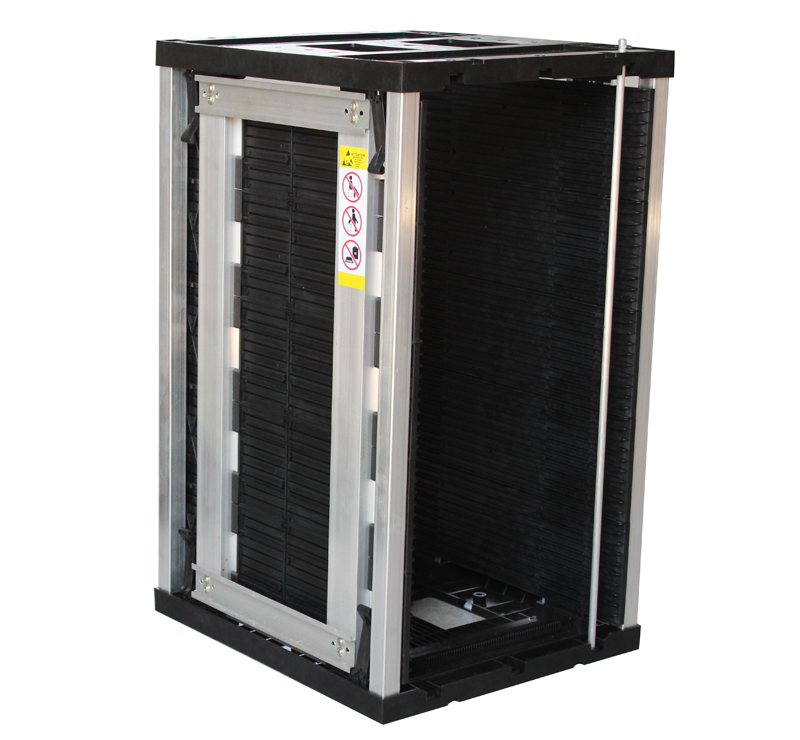

Product Name: PCB plate frame is also called PCBcollection box, PCB automatic plate frame, SMT on therack.

The product parameters: surface resistance: 106 -10 9 O is divided into ordinary type, high temperature resistant dimensions: 355*315*580mm can store 50 block using the specifications of PCB board PCB board: 350* (80-250) mm side guide groove depth of 3.5mm. Grooves, groove width 5mm, pitch 10mm under the bottom plate, gear wheel rail regulation design, easy operatio

A, PCB on the plate rack according to the structure can bedivided into:

1, on the bottom plate is made from plastic, adjustment screw fixed

2, on the bottom plate is made from plastic gear trackadjustment

3, on the bottom plate is a metal plate, gear trackadjustment

4, upper and lower plate is a metal plate adjustment screwfixed

5, upper and lower plate is a metal plate. The adjustment screw fixed (high temperature type, can enter the aging room).

(plate with groove plastic plate structure, two kinds of methods: the whole board, small board splicing)

Two characteristics:

Non-toxic, odorless, moisture, corrosion resistance, light weight, durability, stackable, luxuriant appearance, color is rich, have anti bending, anti ageing, bearing strength,tensile, compression, tearing, high temperature, light,durable, stackable. Characteristics of antistatic etc.

Three: conductive properties:

Conductive resistance: 1, surface resistance: 9 PartyOmega 6 10 -10
